Hinge Drilling Jig: Hole Position, Depth Stops, and Setup Checks
A hinge drilling jig helps place holes consistently, but it cannot decide which hinge your cabinet needs or whether the chosen board is thick enough for it. Before drilling, identify the hinge geometry, mark the correct face, and understand how the jig references the edge. A repeatable mistake is still a mistake, even when every hole looks equally neat.
This guide focuses on planning, secure setup, depth control, and trial holes for common furniture work. It does not provide a universal dimension for every concealed hinge or suggest that a template replaces the hardware manufacturer’s instructions. Use the jig as a positioning aid within a measured process, with suitable tools and protection.
Begin with the hinge specifications
Hinges differ in cup size, setback, screw positions, opening geometry, and mounting arrangements. Two hinges that look similar can require different holes or clearances. Obtain the drilling drawing for the exact hardware before setting a jig. If the drawing is unavailable, measure and confirm requirements carefully rather than borrowing dimensions from another cabinet.
Door thickness, overlay, and cabinet construction also matter. A hole that accepts the hinge cup may still position the door incorrectly if the hardware is unsuitable for the intended installation. Plan the complete hinge arrangement before drilling the visible door. Adjustment screws have a limited purpose and should not be expected to correct fundamentally misplaced holes.
Distinguish locating and cutting tools
Some jigs mark positions, some guide a drill through a bushing, and others support a particular cutter. A drilling limiter controls depth but may not locate the hole center. Check which functions the supplied parts actually perform. The hinge hole opener and drilling limiter listing is a relevant place to review the described components and compatible use.
Confirm cutter diameter, shank fit, and tool compatibility from the documentation. A cutter fitting into a drill chuck does not establish that the jig was designed for it. Do not use a rotating tool against a guide surface that is intended only for marking or for a different bit size.
Measure the board and identify its faces
Measure material thickness at the actual drilling location. Laminates, edge treatments, and rebates can affect usable material. Mark the hinge side and reference edge clearly on removable tape or an appropriate hidden area. A door turned over between marking and drilling can put an otherwise accurate pattern on the wrong face.
Inspect for existing hardware, embedded fasteners, cracks, or damage. Support the workpiece on a stable bench so it cannot tilt under pressure. If the board has a decorative surface, protect it with a suitable clean contact pad or sacrificial material that does not interfere with the jig’s intended registration.
Work from one consistent reference
Use the same stated reference edge for each repeated hole. Measuring some hinges from the top and others from an unrelated mark can accumulate error. Record positions in a simple drawing showing orientation and distances. For paired doors, think through whether the layout is mirrored rather than copying an identical arrangement blindly.
A pencil line has width, and a jig pointer may cover it. Decide how the mark is aligned before starting. Consistency in alignment matters when several holes must match. If the jig provides a stop or scale, confirm it with an independent measurement instead of trusting the scale’s appearance alone.
Set depth from the required hole
Calculate the required drilling depth from the hinge instructions and the actual board thickness. Leave the necessary material below the hole. Do not choose depth simply because the cutter or jig allows that travel. A cabinet door can be ruined when a cup hole breaks through or leaves an excessively thin outer surface.
Depth stops can be collars on a bit, stops on a guide, or other mechanisms. Follow the specific assembly and locking procedure. Make sure the stop has a defined contact surface and cannot slide during use. A loose collar or unclear stopping point can turn a planned shallow hole into uncontrolled travel.
Verify after a trial, not only before it
Use scrap of matching thickness and similar material where possible. Drill the trial hole using the intended setup, then measure the result and test the hinge fit. A stop measured from the tip of a bit may not correspond directly to the usable depth created by every cutter shape. The trial shows what the assembled system actually produces.
Check whether the hinge sits as intended without force and whether the mounting holes align. Do not use the finished door as the first experiment. If you change the cutter, stop, jig position, or workpiece thickness, repeat the relevant checks. A successful test with one arrangement does not validate a changed setup.

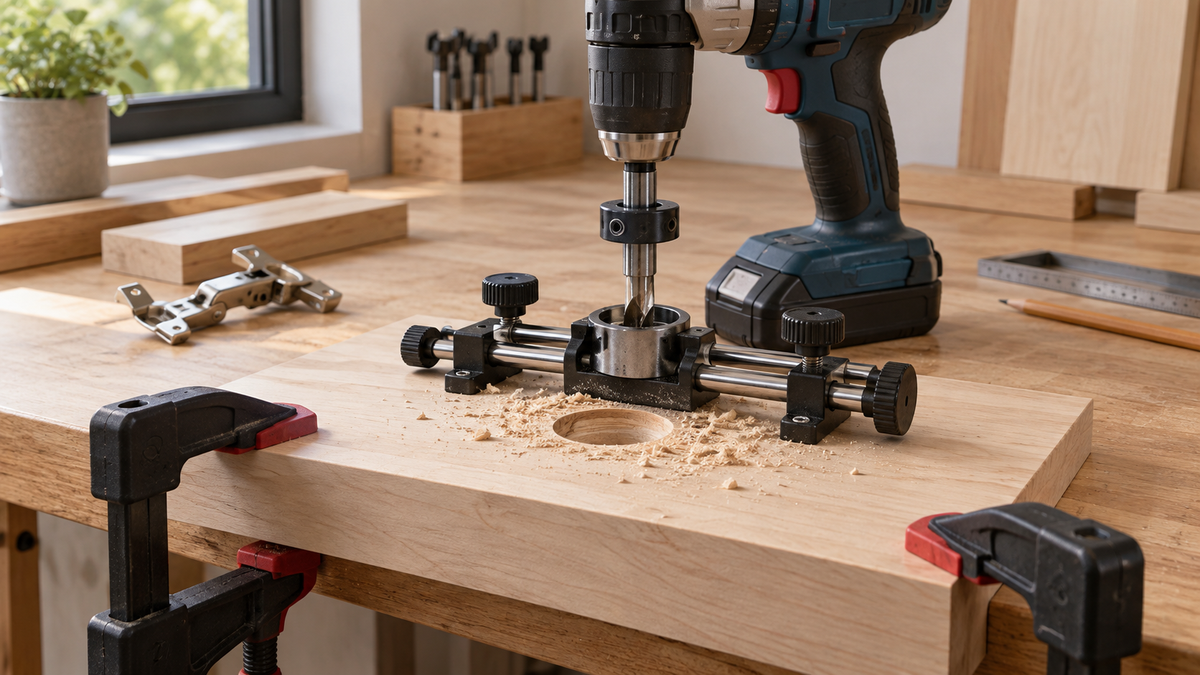

Clamp the jig and work securely
Use the jig’s intended clamping method and suitable workpiece support. Keep clamps outside the cutter’s path and ensure they do not distort the board or shift the reference edge. Holding a small piece in one hand while drilling with the other is not a substitute for secure support. Plan where chips and the tool will move before switching on.
Disconnect power or remove the battery as directed when changing bits or adjusting the setup. Wear suitable eye protection and follow the tool manufacturer’s safety instructions. Keep loose clothing and hair away from moving parts. Dust management should suit the material being drilled and the tool arrangement, rather than relying only on an open window.
Keep the cutter aligned
If the jig guides the bit, keep the tool within that designed guidance without forcing it sideways. Side pressure can damage a guide, enlarge a hole, or cause binding. If the jig only marks the location, use an appropriate method for maintaining the required drilling angle. Do not assume a marking template also controls perpendicularity.
Use the recommended operating speed for the cutter and material. There is no universal speed appropriate for every bit diameter and board. Clear chips in the manner permitted by the tool instructions. Never reach toward a rotating cutter or attempt to remove jammed debris while the tool remains powered.
Review the first finished placement
After a verified trial, complete one planned hinge location and inspect it before repeating the pattern across every door. Check center position, depth, surface condition, and mounting alignment. If the first result differs from the trial, identify what changed: board thickness, reference edge, clamping pressure, cutter, or depth stop.
For mounting screws, confirm pilot hole requirements and screw lengths from the hardware and material. A correct cup hole does not guarantee that the screws will hold or avoid penetrating the opposite face. Do not force an unsuitable screw or overtighten into weakened material. Support the door appropriately while assessing hinge movement and alignment.
Record settings for repeated work
Write down the hinge model, material thickness, reference distances, and verified jig settings. Label a successful scrap sample when useful. This record makes it easier to resume the project without reconstructing the layout from memory. It also helps distinguish a change in hardware from a change in technique.
For other household equipment and current listings, the Vibencio catalog is an internal browsing route. Keep hardware selection tied to its actual specifications; a general catalog page is not a technical drilling drawing or proof of compatibility between unrelated tools.
Maintain the guide and cutter
Remove debris after disconnecting power and follow the maintenance directions for each part. Inspect guide surfaces, fasteners, and depth-stop components for looseness or wear. A damaged bushing can affect accuracy even if the jig still clamps firmly. Store sharp cutters so their edges are protected and cannot injure someone reaching into a drawer.
Avoid modifying the jig to accept a larger cutter or extending a stop beyond its intended range. If the required hardware falls outside the tool’s supported specifications, choose appropriate equipment. Precision comes from a compatible combination of hardware, jig, cutter, and technique rather than from adapting parts until they appear to fit.
Frequently asked questions
Does one hinge drilling jig fit every concealed hinge?
No. Cup diameters, setbacks, and mounting patterns vary. Compare the jig’s supported range with the exact hinge drawing. Similar-looking hardware may need different dimensions, and door thickness remains a separate check.
Can I skip the scrap test?
Testing matching scrap is a valuable way to verify position, depth, and actual hinge fit before drilling a finished surface. Repeat it when important parts of the setup change. A ruler check alone does not show how the assembled system cuts.
Why did the depth stop not prevent a deep hole?
Possible causes include a loose stop, an unsuitable contact point, or measuring from the wrong part of the cutter. Stop work and inspect the mechanism. Follow its instructions and verify the result on scrap rather than continuing on finished doors.
Can hinge adjustment fix a misplaced hole?
Adjustment has limits and is not a remedy for fundamentally incorrect placement. Plan hardware geometry and drilling positions first. Check the initial installation before repeating the layout across the project.
What information should I keep for the next door?
Record hinge specifications, material thickness, reference edges, hole positions, and verified depth settings. Keep orientation clear for mirrored doors. A simple labeled drawing prevents more confusion than an unmarked collection of measurements.
