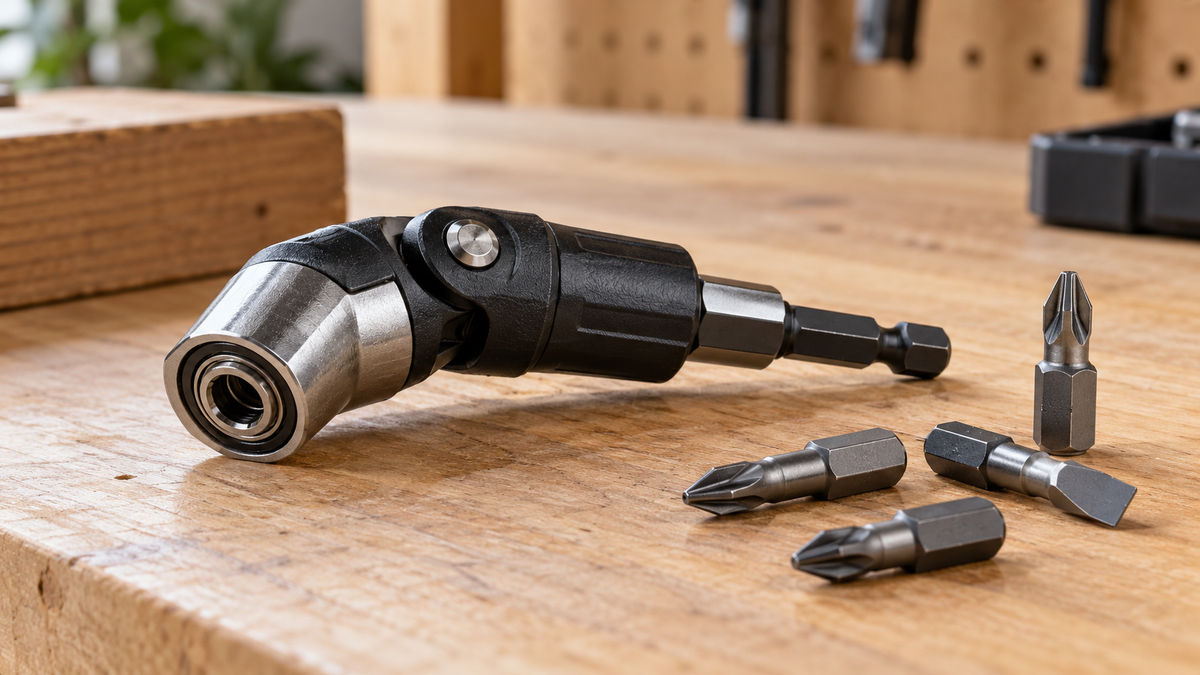

A pivoting drill bit adapter changes the direction in which a driver bit approaches a fastener. That can help when a straight tool body will not fit behind a bracket or inside a cabinet. The adapter also adds length, joints, and another connection to the tool, so choosing one requires more than checking whether the bit reaches the screw.
Begin with the task, the fastener, and the space around them. Some adapters are intended for driving screws, some support particular drilling accessories, and some have narrow limits on speed or torque. The word pivoting describes movement; it does not establish compatibility with every drill, impact driver, or bit. Always use the specific manufacturer's instructions as the operating reference.
Separate access problems from alignment problems
A screw hidden behind a panel presents an access problem. A screw already damaged or positioned at the wrong angle presents a different problem. An adapter may improve access, but it cannot correct a poor pilot hole or restore a rounded fastener head. Determine why the straight approach fails before adding another accessory.
Sketch the direction of the fastener and the clearance needed by the tool, adapter, and hand. Include the distance required to insert and remove the bit. A position that permits driving may still prevent the adapter from being withdrawn once a neighboring component is installed. Sequence the assembly with that final movement in mind.
Check the shank and holder specifications
Read the stated shank size and shape on both the adapter and the power tool's holder. A component that partly enters a chuck is not necessarily properly seated. Inspect the retaining mechanism and follow the insertion procedure, including any check that confirms the shank has locked in place.
Then check the output holder. Bit type, length, and retention method determine what can be fitted securely. Compare those details on the pivoting drill bit adapter page before planning a tight-space task. Avoid stacking several extensions merely to compensate for a mismatch; every added joint changes reach and handling.
Measure the complete working envelope
Clearance is the space occupied during use, not simply the diameter of the adapter head. Include the protruding bit, the pivoted housing, the drill body, and the fingers needed to control the setup. Leave space for the fastener to move outward during removal. A long screw may need more room as it backs out.
Try the arrangement with power disconnected as the tool instructions direct. Hold the bit on the fastener and confirm a natural, balanced position. If access requires bending the wrist sharply or placing fingers beside rotating components, reconsider the tool or assembly sequence. A smaller compatible hand tool may provide a better solution.
Understand what the pivot can and cannot lock
Different designs handle their working angle differently. Some hold selected positions, while others allow movement within a range. Read how the joint is intended to be positioned and supported. Do not assume that a visible pivot pin means the housing can be fixed at any convenient angle under load.
Inspect the joint for damage and excessive play before use. A loose, cracked, or difficult-to-control connection is a reason to stop. Do not tighten an undocumented screw, wedge the housing with scrap material, or tape the pivot to create a locking feature. Those changes can hide the original problem without making the accessory suitable.
Match speed and torque to the accessory
The power tool may be capable of more force than the adapter is designed to transmit. Use the accessory's limits and the tool manufacturer's guidance together. An impact driver requires explicit accessory compatibility; a hexagonal shank alone is not enough evidence. Likewise, permission to drive screws does not imply permission to use every drilling or cutting attachment.
Start with a controlled setting appropriate to the task and keep the bit fully engaged. Stop if the bit slips, the adapter jerks, or the fastener resists unexpectedly. Increasing force immediately can damage the head, workpiece, or accessory. Investigate alignment, fastener condition, and preparation before trying again.
Secure the workpiece and prepare the fastener
Support the material so it cannot move while you operate the tool. Keep clamps out of the adapter's travel and avoid holding small parts near the bit. Check for hidden services before drilling or driving into a surface. The accessory changes the approach direction but does not remove the need for normal tool precautions.
Use the correct bit profile and size for the fastener. A nearly matching tip may seem acceptable in an open area and become much harder to control at an angle. Where a cabinet task involves hinge positioning, the separate hinge drilling jig guide explains preparation considerations; an adapter serves a different role from a locating jig.
Keep hands and clothing away from rotation
Plan a stable grip using only the surfaces intended for handling. Do not steady a rotating shaft with a hand. Remove loose jewelry, contain long hair, and keep clothing clear of the tool. Wear suitable eye protection and follow the power tool's instructions for any other task-specific protection.
Stop the tool fully before repositioning the adapter or changing a bit. Disconnect power or remove the battery as directed for adjustments. Small accessories can make a job look less substantial than it is, but the same spinning and pinch hazards remain. Good access should improve control rather than encourage a rushed grip.
Use a low-risk test before the finished surface
If the material and task allow it, practice the movement on a suitable scrap assembly. Check whether the adapter stays aligned and whether the chosen bit seats properly. A scrap test is especially useful when the finished surface could be marked by a slipping housing or tool body.
For example, a bracket behind a cabinet rail may be reachable with the adapter angled inward, but the drill's battery may strike the cabinet before the screw is seated. Discovering that during a dry fit lets you change the order of assembly. Discovering it under power encourages the kind of sideways pressure that should be avoided.
Clean and store the connections
After use, remove dust and debris using the method specified for the accessory. Keep bit holders and retaining parts clear enough for proper seating. Do not immerse an assembly or add lubricant unless the instructions identify an appropriate procedure. Some visible openings are not intended as oiling points.
Store the adapter with compatible bits and its instructions, away from damp conditions. Inspect it after a drop or jam before using it again. Retire damaged bits rather than keeping them in the same compartment as serviceable ones. A tidy accessory set makes it easier to select the correct parts without relying on appearance alone.
Compare three possible approaches to a tight screw
Consider a screw behind a shelf support. The first option is to remove an adjacent panel and regain a straight approach. The second is to change the order of assembly so the screw is installed earlier. The third is to use a compatible adapter within its operating limits. Comparing these options before beginning can save more effort than selecting an accessory immediately.
For the adapter option, make a dry fit with the exact bit and tool body. Check the full path of the handle or battery, the space occupied by your hand, and the room needed when the fastener moves outward. Keep the workpiece supported during this assessment. If the setup requires sideways pressure to keep the tip seated, the access problem has not been solved.
After choosing an approach, prepare the screw and material appropriately. Confirm that the fastener is correct for the assembly and that any pilot-hole preparation follows the hardware instructions. The adapter cannot make an unsuitable fastener or an incorrect hole location appropriate. When the operation is complete, remove the accessory with the tool safely stopped and inspect the fastener head and nearby surface. Inspect the bit after each difficult operation before reusing it. Marks or damaged heads can reveal a control problem worth correcting before repeating the same operation elsewhere.
Frequently asked questions
Can a pivoting drill bit adapter be used with an impact driver?
Only when the adapter explicitly supports the intended impact tool and task. Matching shank geometry does not establish impact compatibility or an unlimited torque rating.
Will it drill holes around a corner?
That depends on the model's documented purpose and compatible accessories. A screw-driving adapter should not automatically be treated as a general drilling attachment.
Why does the bit keep slipping?
Check the bit profile, size, fastener condition, seating, and alignment. Stop rather than repeatedly applying more pressure. Replace damaged parts and improve access before continuing.
Is a longer extension always better?
No. Extra length and joints change clearance and control. Use the shortest compatible arrangement that reaches the task comfortably and remains within the accessory's instructions.
Should I hold the pivoting head while it runs?
Follow the designated grip instructions. Never place fingers on rotating components or invent a support method. If the setup cannot be controlled using its intended handling surfaces, change the approach.
